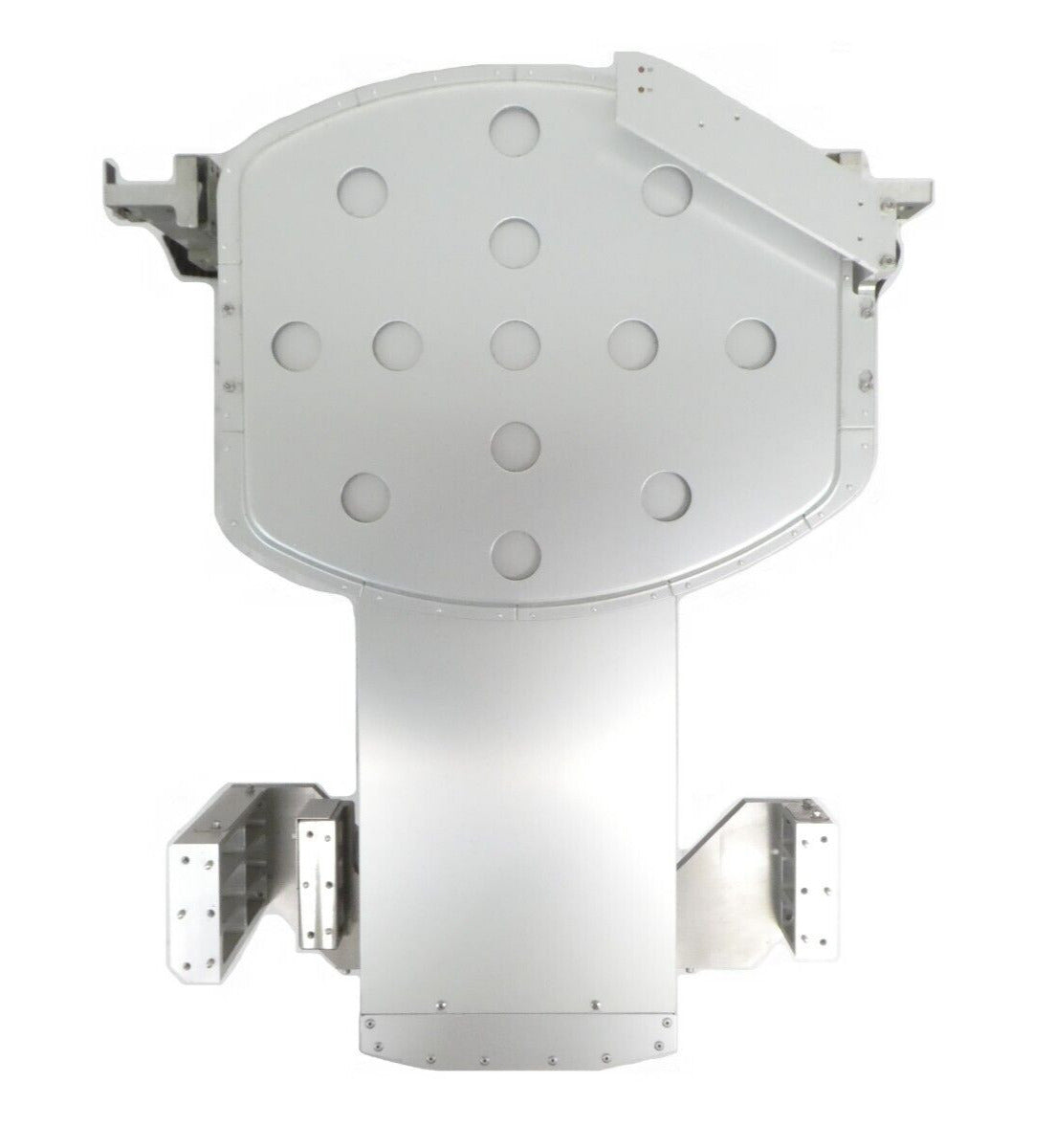

TEL Tokyo Electron 300mm Wafer PRA Process Block Robotics Arm Lithius Incomplete

TEL Tokyo Electron 300mm Wafer PRA Process Block Robotics Arm Lithius Incomplete

  • Order within
Available: 1 In Stock
$4,552.26 $6,503.23

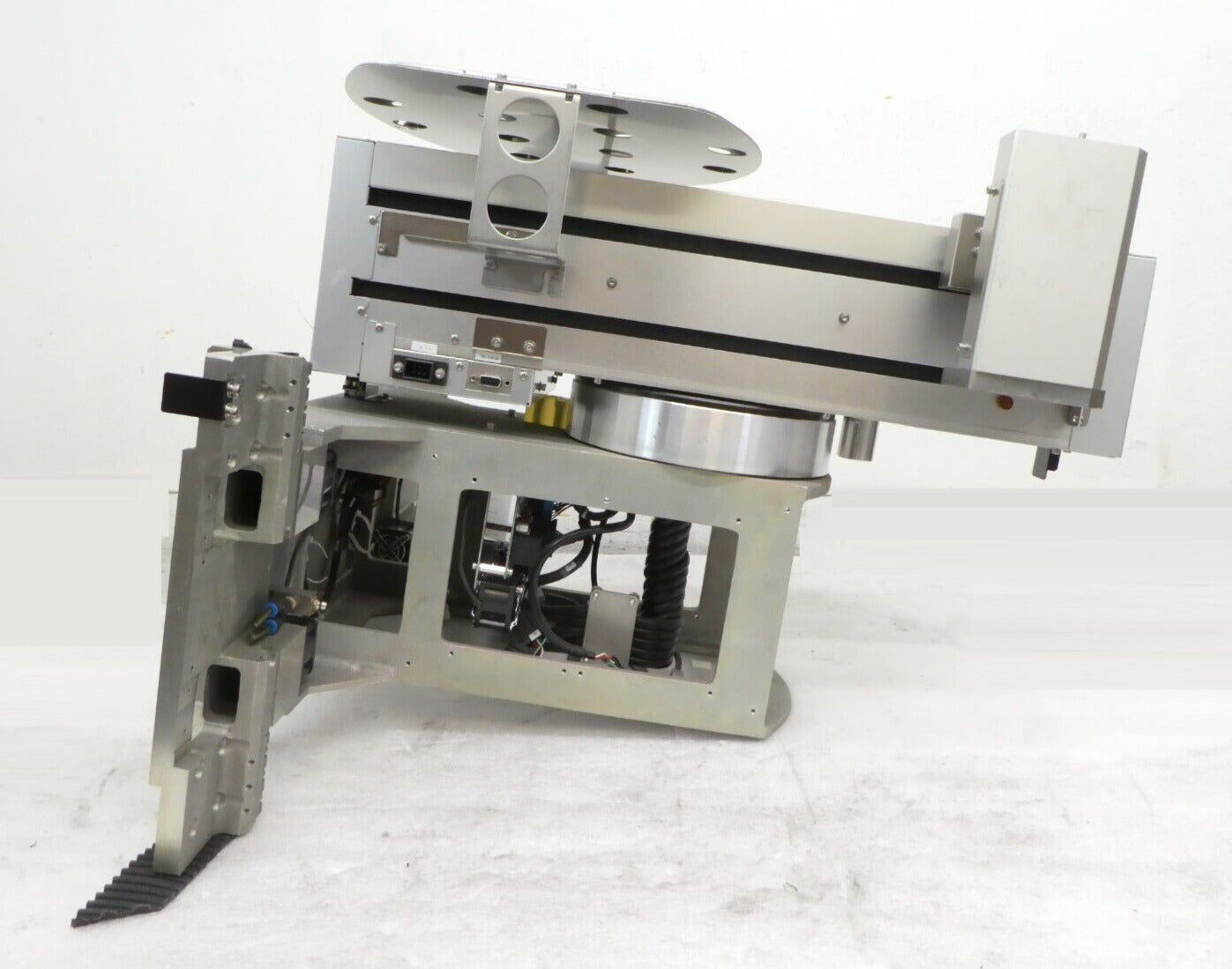

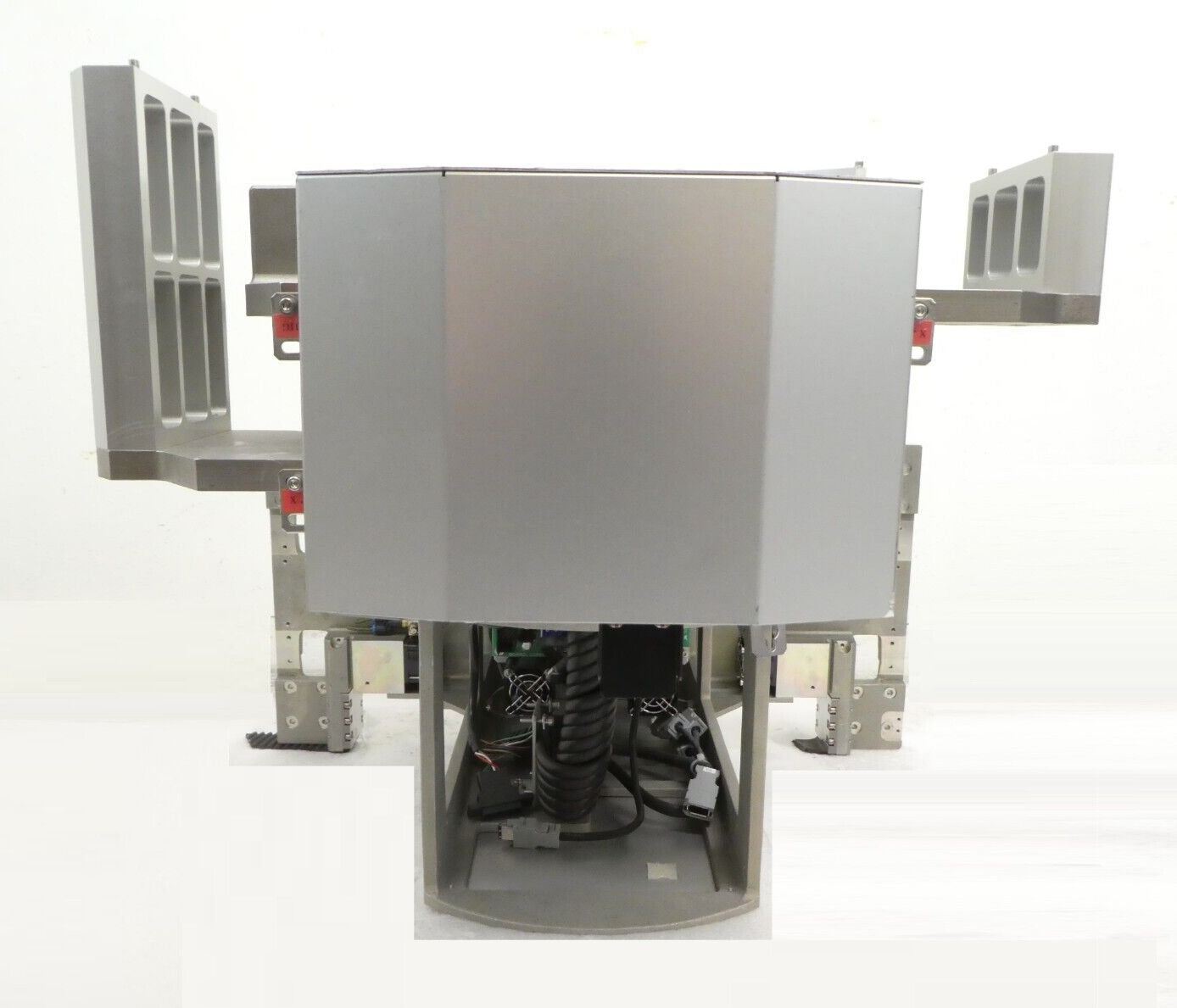

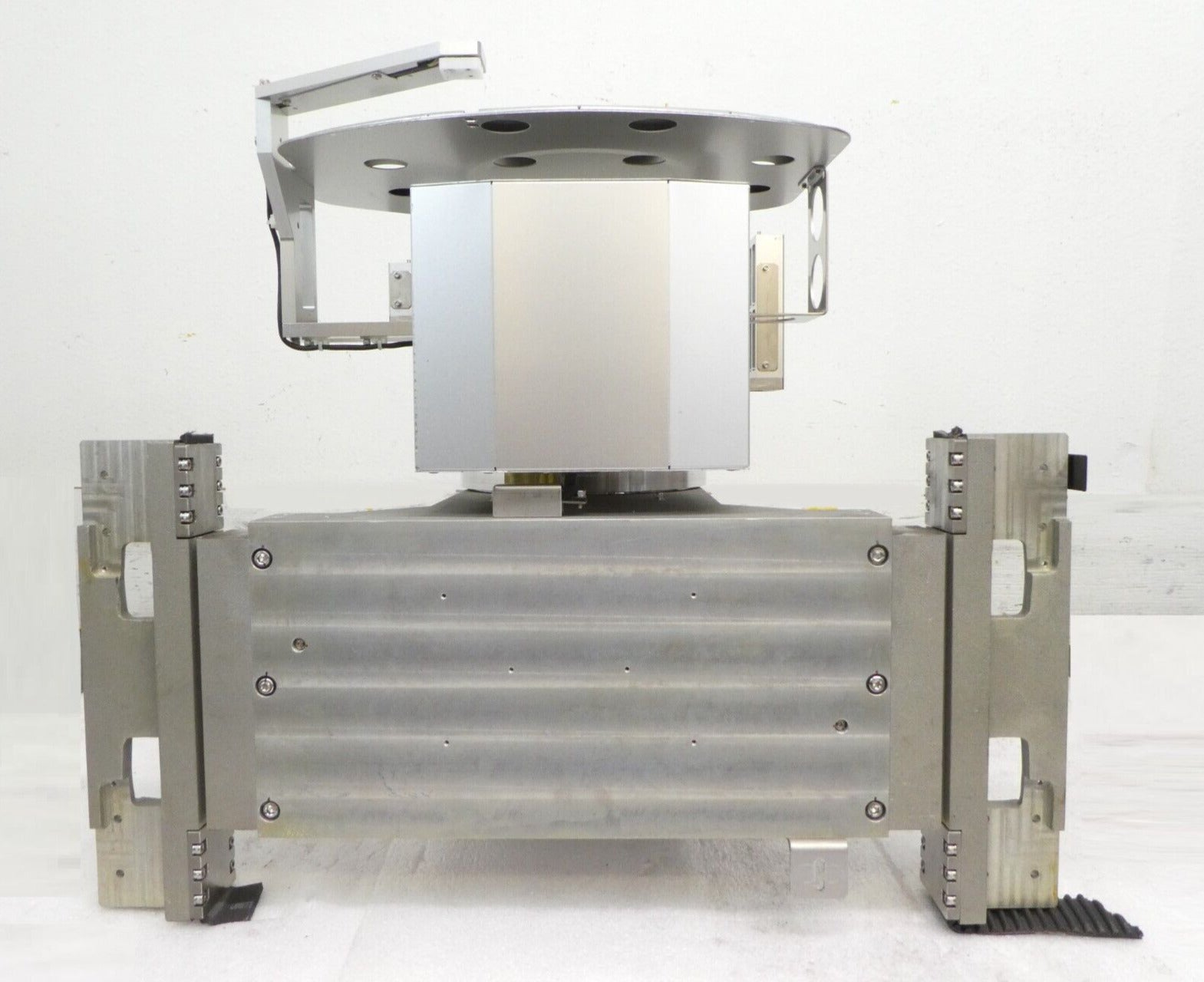

TEL Tokyo Electron 300mm Wafer PRA Process Block Robotics Arm Lithius Incomplete










  • Model No: PRA X AXIS ASSY
  • Process Block Robotics Arm
  • Removed from a TEL Tokyo Electron 300mm Clean Track Lithius System
  • Sold As-Is
  • Made in Japan


    Parts List (approximation, parts may vary or not be included or installed)


    Assembly Part No: 5085-407036-19 X AXIS ASSY


  • 5010-101146-12 BASE,(X)UPPER 1
  • 5010-101147-13 BASE(X),LOWER 1
  • 5004-400017-12 ARM(X1-1) (509510045511 1
  • 5010-305344-11 SUPPORT(X1-1) 1
  • 5004-400018-11 ARM(X2-1) (509510045511 1
  • 5010-306532-11 ARM(X2-2) 1
  • 5010-305345-12 SUPPORT(X2-1) 1
  • 5004-400019-11 ARM(X3-1) (509510045511 1
  • 5010-306533-11 ARM(X3-2) 1
  • 5010-305346-11 SUPPORT(X3-1) 1
  • 5004-400015-11 CLAMP,BELT (509510045411 6
  • 5010-401565-12 PLATE 5
  • 5010-404925-11 STOPPER(X-1) 3
  • 5010-404926-11 STOPPER(X-2) 6
  • 5010-305873-11 SUPPORT(X-2) 1
  • 5010-305987-11 SUPPORT(X2-2) 1
  • 5010-306512-12 STAY,SUPPORT 1
  • 5010-405028-11 COVER,CABLE 1
  • 5010-404472-11 COVER,SENSOR 1
  • 5010-405427-11 PILLER(1) 2
  • 5010-405428-11 PILLER(2) 4
  • 5010-307086-12 PLATE(1),SIDE 1
  • 5010-306535-12 PLATE(2),SIDE 1
  • 5010-306536-12 PLATE(3),SIDE 1
  • 5010-404927-11 BLOCK,AJUST 2
  • 5010-405430-12 SHUTTER(X) 3
  • 5010-405429-12 BRACKET,SUPPORT 1
  • 5010-408761-11 SHUTTER(TH) 1
  • 5010-402407-11 STOPPER(TH) 1
  • 5010-405431-12 BRACKET,CABLE 1
  • 5010-402408-12 BRACKET 2
  • 5010-405432-12 BRACKET(1),MOUNT 1
  • 5010-307587-12 BRACKET(2),MOUNT 1
  • 5018-000001-13 LM GUIDE SHS15V1UUC1FEM+545LF 3

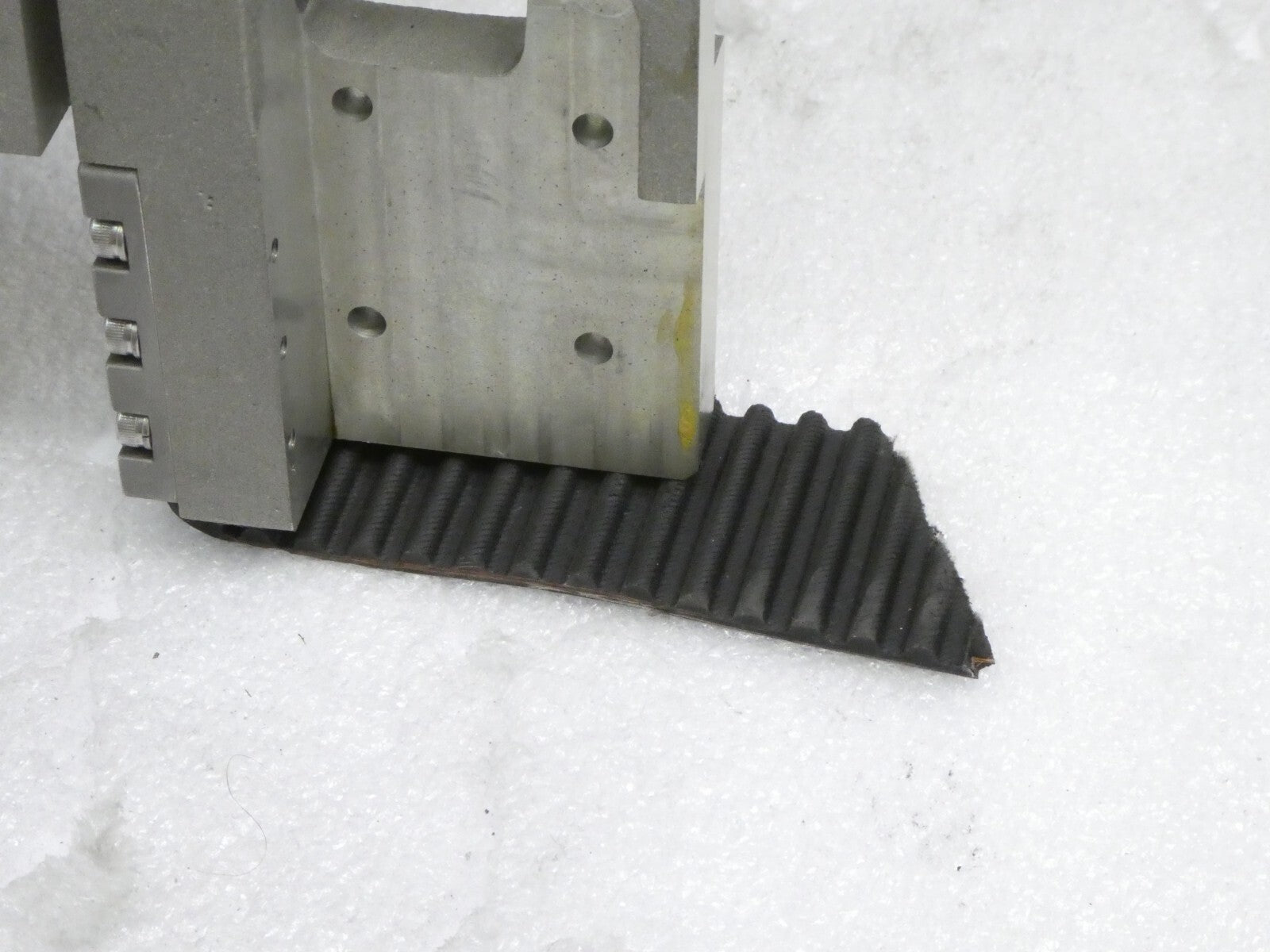

  • 023-003018-1 BELT,TIMING 1500-3GT-15 OPEN 3
  • 023-003019-1 BELT,TIMING 297-3GT-9 3
  • 026-006380-1 SPACER DXMK10-8-5-9 3
  • 021-000739-1 PIN,PRL 4*10 SMALL M6 A-TYPE SUS303 23
  • 044-000044-1 SUPPORT,PCB EM-3 2
  • 044-001720-1 SUPPORT,PCB 3SQS-10 4
  • 020-000821-1 CAP SCREW M3*6 SUS304 W/SPR&FLAT WASHER 27
  • 020-000009-1 CAP SCREW M3*10 SUS304 2
  • 020-000824-1 CAP SCREW M3*10 SUS304 W/SPR & FLAT WASHER 8
  • 020-001089-1 CAP SCREW M3*14 SUS304 8
  • 020-000020-1 CAP SCREW M3*20 SUS304 22
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 19
  • 020-001093-1 CAP SCREW M4*14 SUS304 45
  • 020-001091-1 CAP SCREW M4*16 SUS304 22
  • 020-000042-1 CAP SCREW M4*20 SUS304 4
  • 020-000737-1 CAP SCREW M5*14 SUS304 15
  • 020-000090-1 CAP SCREW M6*20 SUS304 2
  • 020-001532-1 BAIND SCREW M3*8 SUS304 10
  • 020-005645-1 CAP SCREW CBSST4-6 6
  • 032-000251-1 FLAT WASHER M3 SUS304 SMALL CIRCLE 28
  • 032-000005-1 FLAT WASHER M3 SUS304 POLISHED ROUND 4
  • 032-000054-1 SPRING WASHER M3 SUS304 32
  • 032-000267-1 FLAT WASHER M4 SUS304 SMALL CIRCLE 6
  • 032-000011-1 FLAT WASHER M4 SUS304 POLISHED ROUND 26
  • 032-000058-1 SPRING WASHER M4 SUS304 44
  • 032-000062-1 SPRING WASHER M5 SUS304 15
  • 032-000024-1 FLAT WASHER M6 SUS304 POLISHED ROUND 2
  • 032-000066-1 SPRING WASHER M6 SUS304 2
  • 033-000003-1 NUT M3 SUS304 8


    Assembly Part No: 5085-410083-11 PULLEY(X) ASSY,IDLER


  • 5002-400080-13 PULLEY(3) 2
  • 5010-405954-12 HOLDER,PULLEY 2
  • 5010-405873-12 SHAFT(2) 2
  • 5004-400021-12 HOUSING (509510045711 1
  • 5010-405955-11 SPACER(1),BEARING 2
  • 5010-405956-12 SPACER(2),BEARING 2
  • 022-100356-1 BEARING 608ZZ 4
  • 020-005664-1 CAP SCREW CBSST5-10 4
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 020-000042-1 CAP SCREW M4*20 SUS304 1
  • 032-000062-1 SPRING WASHER M5 SUS304 4


    Assembly Part No: 5085-410757-11 MOTOR(X) ASSY


  • 5002-400078-11 PULLEY(1) 1
  • 5004-400022-11 BRACKET,MOTOR (509510045711 1
  • 5040-000007-11 MOTOR,SERVO SGMAS-A5ABA-TE11 1
  • 020-007185-1 SET SCREW M4*5 MF-ZNB DOUBLE POINT 2
  • 020-000034-1 CAP SCREW M4*12 SUS304 2
  • 032-000058-1 SPRING WASHER M4 SUS304 4
  • 032-000267-1 FLAT WASHER M4 SUS304 SMALL CIRCLE 5
  • 020-000042-1 CAP SCREW M4*20 SUS304 2
  • 020-000046-1 CAP SCREW M4*30 SUS304 1
  • 033-000007-1 NUT M4 SUS304 1


    Assembly Part No: 5085-407077-11 COVER(X) ASSY


  • 5010-201863-11 COVER(1) 1
  • 5010-201864-11 COVER(2) 1
  • 5010-302543-11 COVER(3) 1
  • 5010-307588-11 COVER(4) 1
  • 5010-304490-11 COVER 1
  • 5010-306600-11 COVER(6) 1
  • 020-002601-1 BAIND SCREW M3*4 SUS304 31
  • 020-000821-1 CAP SCREW M3*6 SUS304 W/SPR&FLAT WASHER 2
  • 032-000251-1 FLAT WASHER M3 SUS304 SMALL CIRCLE 2
  • 032-000054-1 SPRING WASHER M3 SUS304 2


    Assembly Part No: 5085-415480-11 PULLEY(X1) ASSY,DRIVE


  • 5002-400079-12 PULLEY(2) 1
  • 5002-400080-13 PULLEY(3) 2
  • 5010-405954-12 HOLDER,PULLEY 3
  • 5010-405872-13 SHAFT(1) 1
  • 5010-405873-12 SHAFT(2) 1
  • 5004-400021-12 HOUSING (509510045711 1
  • 5010-405955-11 SPACER(1),BEARING 2
  • 5010-405956-12 SPACER(2),BEARING 1
  • 022-100356-1 BEARING 608ZZ 4
  • 020-005664-1 CAP SCREW CBSST5-10 4
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 020-007185-1 SET SCREW M4*5 MF-ZNB DOUBLE POINT 2
  • 032-000062-1 SPRING WASHER M5 SUS304 4


    Assembly Part No: 5085-415481-11 PULLEY(X2,3) ASSY,DRIVE


  • 5002-400079-12 PULLEY(2) 1
  • 5002-400080-13 PULLEY(3) 2
  • 5010-405954-12 HOLDER,PULLEY 3
  • 5010-405872-13 SHAFT(1) 1
  • 5010-405873-12 SHAFT(2) 1
  • 5004-400021-12 HOUSING (509510045711 1
  • 5010-405955-11 SPACER(1),BEARING 2
  • 5010-405956-12 SPACER(2),BEARING 1
  • 022-100356-1 BEARING 608ZZ 4
  • 020-005664-1 CAP SCREW CBSST5-10 4
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 020-007185-1 SET SCREW M4*5 MF-ZNB DOUBLE POINT 2
  • 032-000062-1 SPRING WASHER M5 SUS304 4


    Assembly Part No: 5086-403957-15 X AXIS(E) ASSY,PRA


  • 5041-000299-12 CABLE ASSY 1746249-1 (PRA X #01) 1
  • 5041-000306-12 CABLE ASSY 1746250-1 (PRA X #06) 1
  • 5086-404162-11 CABLE,PRA X #05 1
  • 5086-402882-12 SENSOR,PHOTO PRA X #01 450 1
  • 5086-402883-12 SENSOR,PHOTO PRA X #02 450 1
  • 5086-402884-12 SENSOR,PHOTO PRA X #03 445 1
  • 5086-402885-11 SENSOR,LIGHT PRA X #01 730 1
  • 5086-402886-11 SENSOR,DETECT PRA X #01 200 1
  • 5041-000405-11 CABLE ASSY PRA MTR-X1 #02 1
  • 5041-000406-11 CABLE ASSY PRA MTR-X2 #02 1
  • 5041-000407-11 CABLE ASSY PRA MTR-X3 #02 1
  • 5086-404248-11 CABLE,PRA ENC-X1 #03 1
  • 5086-404249-11 CABLE,PRA ENC-X2 #03 1
  • 5086-404250-11 CABLE,PRA ENC-X3 #03 1

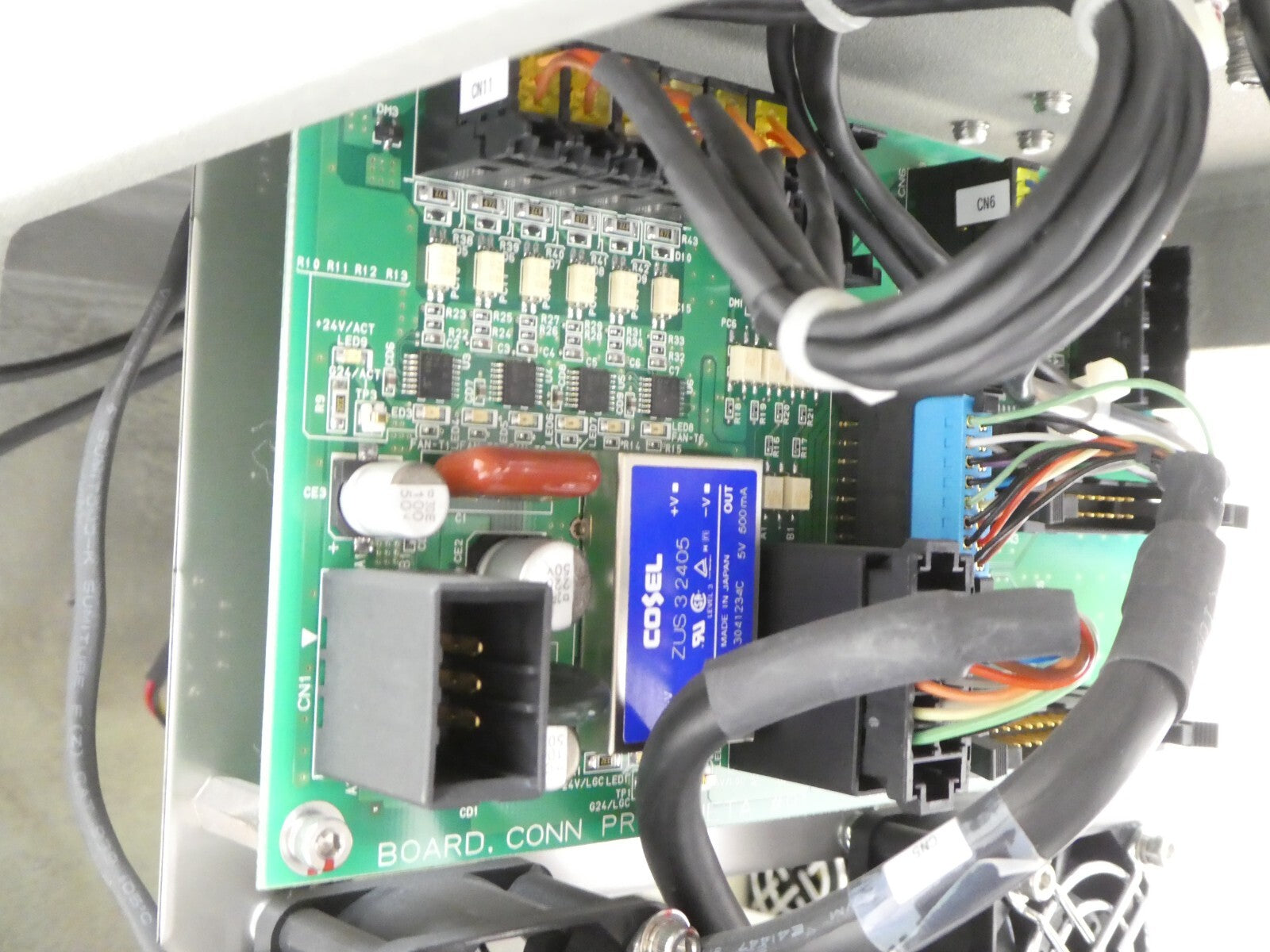

  • 5044-000077-11 PCB,I/F TOB1045(BOARD,CONN PRA X #02) 1


    Assembly Part No: 5085-405946-17 THETA AXIS ASSY


  • 5004-400020-12 THETA,BASE (509510045811 1
  • 5010-306499-12 BRACKET(FAN) 1
  • 5004-400016-11 HOLDER,BELT (509510045411 4
  • 5010-404896-11 BLOCK,FITTING 2
  • 5010-405326-11 SHUTTER(Z) 1
  • 5010-402272-12 STOPPER 1
  • 5010-401565-12 PLATE 2
  • 5010-403121-12 BRACKET 1
  • 5010-403122-12 BRACKET,SUPPORT 1
  • 5010-408760-11 COVER 1
  • 5010-306401-11 PLATE(1),CLAMP 2
  • 5010-405355-11 PLATE(2),CLAMP 2
  • 5010-306402-11 PLATE(3),CLAMP 2
  • 5010-405356-11 PLATE(4),CLAMP 4
  • 5010-405357-12 PLATE(5),CLAMP 2
  • 5010-403337-11 PLATE,NUT 4
  • 5010-403339-11 BRACKET,CLAMP(2) 2
  • 5010-403340-11 BRACKET,CLAMP(3) 2
  • 5002-300008-11 CABLE(1) 2
  • 5002-300009-11 CABLE(2) 2
  • 017-001655-1 TUBE PN-4-4*2.5 IVORY 1
  • 026-006368-1 SPACER NCLM6-8-17.5 4
  • 028-004861-1 FITTING,TUBE ELB4-PT1/8-TR 4
  • 028-016917-1 FITTING,TUBE EY4-PT1/8 2
  • 028-010939-1 FITTING,TUBE GPA6 2
  • 020-000821-1 CAP SCREW M3*6 SUS304 W/SPR&FLAT WASHER 26
  • 020-000007-1 CAP SCREW M3*8 SUS304 4
  • 020-001186-1 CAP SCREW M3*35 SUS304 12
  • 020-002945-1 CAP SCREW M4*6 SUS304 W/SPR&FLAT WASHER 16
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 20
  • 020-001093-1 CAP SCREW M4*14 SUS304 26
  • 020-000042-1 CAP SCREW M4*20 SUS304 6
  • 020-000064-1 CAP SCREW M5*20 SUS304 16
  • 020-001164-1 CAP SCREW M6*30 SUS304 4
  • 032-000251-1 FLAT WASHER M3 SUS304 SMALL CIRCLE 4
  • 032-000005-1 FLAT WASHER M3 SUS304 POLISHED ROUND 12
  • 032-000054-1 SPRING WASHER M3 SUS304 16
  • 032-000011-1 FLAT WASHER M4 SUS304 POLISHED ROUND 6
  • 032-000058-1 SPRING WASHER M4 SUS304 32
  • 032-000018-1 FLAT WASHER M5 SUS304 ROLISHED ROUND 16
  • 032-000062-1 SPRING WASHER M5 SUS304 16

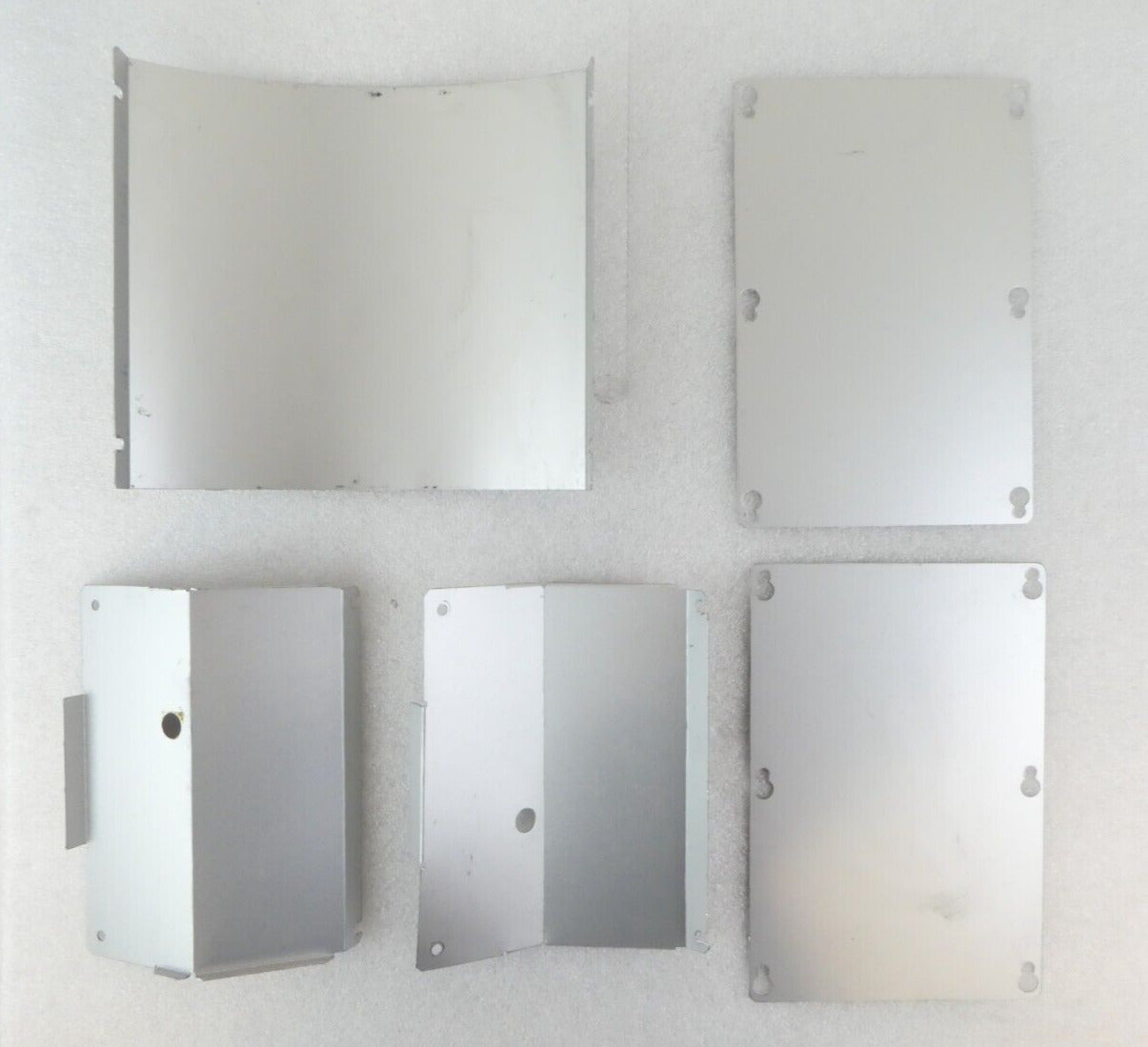

    Assembly Part No: 5085-406978-11 COVER(TH) ASSY


  • 5010-305828-12 COVER,FRONT 1
  • 5010-305829-12 COVER,REAR 2
  • 5010-305830-11 COVER,SIDE 2
  • 5010-305831-11 COVER,UNDER 1
  • 020-100825-1 BAIND SCREW M4*6 SUS304 30


    Assembly Part No: 5085-407862-11 MOTOR(T) ASSY


  • 5040-000009-11 MOTOR,SERVO SGMCS-08DDA-TE12 1
  • 020-004197-1 CLUMPING SCREW FSU6-16 6
  • 020-000080-1 CAP SCREW M6*10 SUS304 5
  • 020-000090-1 CAP SCREW M6*20 SUS304 6
  • 032-000187-1 FLAT WASHER M6 SUS304 POLISHED ROUND 6
  • 032-000066-1 SPRING WASHER M6 SUS304 6
  • 033-000016-1 NUT M6 SUS304 6


    Assembly Part No: 5086-403958-12 THETA AXIS(E) ASSY,PRA


  • 5041-000256-11 CABLE ASSY 1717344-6 (PRA T #11) 1
  • 5041-000257-11 CABLE ASSY 1717344-1 (PRA T #12) 1
  • 5041-000258-11 CABLE ASSY 1717344-3 (PRA T #13) 1
  • 5041-000259-11 CABLE ASSY 1717344-2 (PRA T#14) 1
  • 5041-000260-11 CABLE ASSY 1717344-5 (PRA T #15) 1
  • 5041-000261-11 CABLE ASSY 1717344-4 (PRA T #16) 1
  • 5041-000066-11 CABLE ASSY,FLAT WH FHV-SX(5W)76C A-A 1
  • 5086-402872-11 SENSOR,PHOTO PRA T #01 400 1
  • 5086-402873-11 FAN,DC PRA T #11 250 1
  • 5086-402874-11 FAN,DC PRA T #12 250 1
  • 5086-402875-11 FAN,DC PRA T #13 250 1
  • 5086-402876-11 FAN,DC PRA T #14 250 1
  • 5086-402877-11 FAN,DC PRA T #15 250 1
  • 5086-402878-11 FAN,DC PRA T #16 250 1

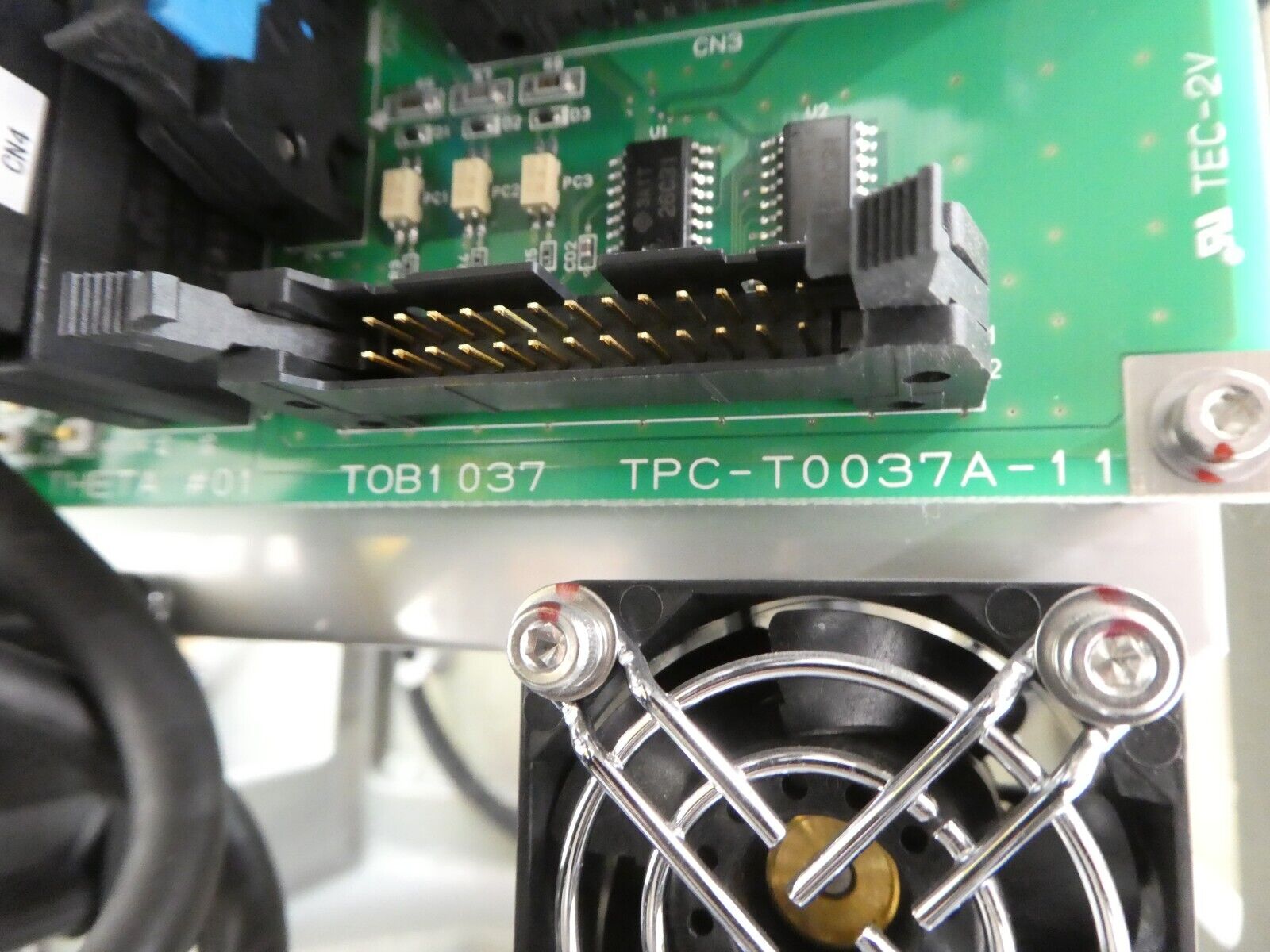

  • 5044-000017-11 PCB I/F TOB1037(CONN PRA THETA #01) 1


    Assembly Part No: 5085-404901-11 FORK(300)ASSY (NOT INSTALLED OR INCLUDED)


  • 5010-201367-13 FORK,PRA 1
  • 5004-300007-11 BLOCK(300),PRA (509510021211 3
  • 020-005778-1 CAP SCREW CBSST4-8 3
  • 020-002601-1 BAIND SCREW M3*4 SUS304 6
  • 032-000585-1 FLAT WASHER M4 1L SUS304 3

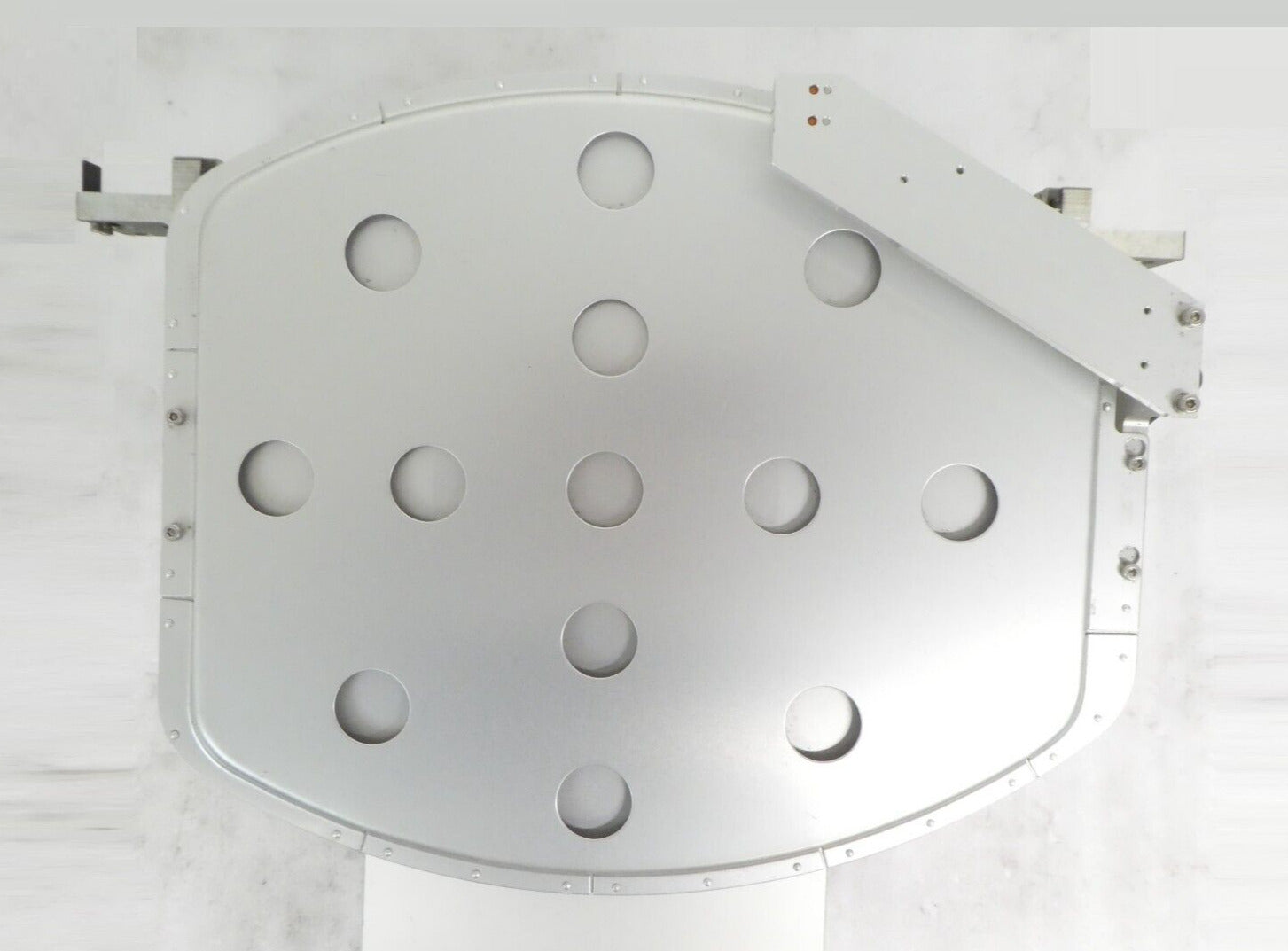

    Assembly Part No: 5085-410825-14 PLATE ASSY,HEAT SHIELD


  • 5004-400024-11 PLATE,COVER (509510045611 1
  • 5010-406949-11 SUPPORT(X-1) 1
  • 020-000028-1 CAP SCREW M4*6 SUS304 2
  • 020-007602-1 TORX CAP SCREW M4*8 SUS304 2
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 032-000011-1 FLAT WASHER M4 SUS304 POLISHED ROUND 2
  • 032-000058-1 SPRING WASHER M4 SUS304 2





    This TEL Tokyo Electron 300mm Wafer PRA Process Block Robotics Arm is used untested surplus and is being sold as-is. The physical condition is good and there are visible signs of previous use and handling.





  • Sale Details





    • Item Condition: Untested Surplus, Sold As-Is


    • Estimated Packed Shipping Dimensions: L x W x H = 32"x32"x32" @ 250 lbs; Requires Freight Shipping


    • Shipping Terms: All Domestic and International shipping quotes and/or fees are subject to change due to packaging requirements, custom packing, transport rate fluctuations, and supply chain demands. We will contact you regarding any shipments that require or incur additional after purchase packing fees or rate changes.
    • Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
    • For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
    • Items are sold with a 90-Day Satisfaction Guarantee





      Lister 31










    Listed with ExportYourStore.com












    TEL Tokyo Electron 300mm Wafer PRA Process Block Robotics Arm Lithius Incomplete










  • Model No: PRA X AXIS ASSY
  • Process Block Robotics Arm
  • Removed from a TEL Tokyo Electron 300mm Clean Track Lithius System
  • Sold As-Is
  • Made in Japan


    Parts List (approximation, parts may vary or not be included or installed)


    Assembly Part No: 5085-407036-19 X AXIS ASSY


  • 5010-101146-12 BASE,(X)UPPER 1
  • 5010-101147-13 BASE(X),LOWER 1
  • 5004-400017-12 ARM(X1-1) (509510045511 1
  • 5010-305344-11 SUPPORT(X1-1) 1
  • 5004-400018-11 ARM(X2-1) (509510045511 1
  • 5010-306532-11 ARM(X2-2) 1
  • 5010-305345-12 SUPPORT(X2-1) 1
  • 5004-400019-11 ARM(X3-1) (509510045511 1
  • 5010-306533-11 ARM(X3-2) 1
  • 5010-305346-11 SUPPORT(X3-1) 1
  • 5004-400015-11 CLAMP,BELT (509510045411 6
  • 5010-401565-12 PLATE 5
  • 5010-404925-11 STOPPER(X-1) 3
  • 5010-404926-11 STOPPER(X-2) 6
  • 5010-305873-11 SUPPORT(X-2) 1
  • 5010-305987-11 SUPPORT(X2-2) 1
  • 5010-306512-12 STAY,SUPPORT 1
  • 5010-405028-11 COVER,CABLE 1
  • 5010-404472-11 COVER,SENSOR 1
  • 5010-405427-11 PILLER(1) 2
  • 5010-405428-11 PILLER(2) 4
  • 5010-307086-12 PLATE(1),SIDE 1
  • 5010-306535-12 PLATE(2),SIDE 1
  • 5010-306536-12 PLATE(3),SIDE 1
  • 5010-404927-11 BLOCK,AJUST 2
  • 5010-405430-12 SHUTTER(X) 3
  • 5010-405429-12 BRACKET,SUPPORT 1
  • 5010-408761-11 SHUTTER(TH) 1
  • 5010-402407-11 STOPPER(TH) 1
  • 5010-405431-12 BRACKET,CABLE 1
  • 5010-402408-12 BRACKET 2
  • 5010-405432-12 BRACKET(1),MOUNT 1
  • 5010-307587-12 BRACKET(2),MOUNT 1
  • 5018-000001-13 LM GUIDE SHS15V1UUC1FEM+545LF 3
  • 023-003018-1 BELT,TIMING 1500-3GT-15 OPEN 3
  • 023-003019-1 BELT,TIMING 297-3GT-9 3
  • 026-006380-1 SPACER DXMK10-8-5-9 3
  • 021-000739-1 PIN,PRL 4*10 SMALL M6 A-TYPE SUS303 23
  • 044-000044-1 SUPPORT,PCB EM-3 2
  • 044-001720-1 SUPPORT,PCB 3SQS-10 4
  • 020-000821-1 CAP SCREW M3*6 SUS304 W/SPR&FLAT WASHER 27
  • 020-000009-1 CAP SCREW M3*10 SUS304 2
  • 020-000824-1 CAP SCREW M3*10 SUS304 W/SPR & FLAT WASHER 8
  • 020-001089-1 CAP SCREW M3*14 SUS304 8
  • 020-000020-1 CAP SCREW M3*20 SUS304 22
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 19
  • 020-001093-1 CAP SCREW M4*14 SUS304 45
  • 020-001091-1 CAP SCREW M4*16 SUS304 22
  • 020-000042-1 CAP SCREW M4*20 SUS304 4
  • 020-000737-1 CAP SCREW M5*14 SUS304 15
  • 020-000090-1 CAP SCREW M6*20 SUS304 2
  • 020-001532-1 BAIND SCREW M3*8 SUS304 10
  • 020-005645-1 CAP SCREW CBSST4-6 6
  • 032-000251-1 FLAT WASHER M3 SUS304 SMALL CIRCLE 28
  • 032-000005-1 FLAT WASHER M3 SUS304 POLISHED ROUND 4
  • 032-000054-1 SPRING WASHER M3 SUS304 32
  • 032-000267-1 FLAT WASHER M4 SUS304 SMALL CIRCLE 6
  • 032-000011-1 FLAT WASHER M4 SUS304 POLISHED ROUND 26
  • 032-000058-1 SPRING WASHER M4 SUS304 44
  • 032-000062-1 SPRING WASHER M5 SUS304 15
  • 032-000024-1 FLAT WASHER M6 SUS304 POLISHED ROUND 2
  • 032-000066-1 SPRING WASHER M6 SUS304 2
  • 033-000003-1 NUT M3 SUS304 8


    Assembly Part No: 5085-410083-11 PULLEY(X) ASSY,IDLER


  • 5002-400080-13 PULLEY(3) 2
  • 5010-405954-12 HOLDER,PULLEY 2
  • 5010-405873-12 SHAFT(2) 2
  • 5004-400021-12 HOUSING (509510045711 1
  • 5010-405955-11 SPACER(1),BEARING 2
  • 5010-405956-12 SPACER(2),BEARING 2
  • 022-100356-1 BEARING 608ZZ 4
  • 020-005664-1 CAP SCREW CBSST5-10 4
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 020-000042-1 CAP SCREW M4*20 SUS304 1
  • 032-000062-1 SPRING WASHER M5 SUS304 4


    Assembly Part No: 5085-410757-11 MOTOR(X) ASSY


  • 5002-400078-11 PULLEY(1) 1
  • 5004-400022-11 BRACKET,MOTOR (509510045711 1
  • 5040-000007-11 MOTOR,SERVO SGMAS-A5ABA-TE11 1
  • 020-007185-1 SET SCREW M4*5 MF-ZNB DOUBLE POINT 2
  • 020-000034-1 CAP SCREW M4*12 SUS304 2
  • 032-000058-1 SPRING WASHER M4 SUS304 4
  • 032-000267-1 FLAT WASHER M4 SUS304 SMALL CIRCLE 5
  • 020-000042-1 CAP SCREW M4*20 SUS304 2
  • 020-000046-1 CAP SCREW M4*30 SUS304 1
  • 033-000007-1 NUT M4 SUS304 1


    Assembly Part No: 5085-407077-11 COVER(X) ASSY


  • 5010-201863-11 COVER(1) 1
  • 5010-201864-11 COVER(2) 1
  • 5010-302543-11 COVER(3) 1
  • 5010-307588-11 COVER(4) 1
  • 5010-304490-11 COVER 1
  • 5010-306600-11 COVER(6) 1
  • 020-002601-1 BAIND SCREW M3*4 SUS304 31
  • 020-000821-1 CAP SCREW M3*6 SUS304 W/SPR&FLAT WASHER 2
  • 032-000251-1 FLAT WASHER M3 SUS304 SMALL CIRCLE 2
  • 032-000054-1 SPRING WASHER M3 SUS304 2


    Assembly Part No: 5085-415480-11 PULLEY(X1) ASSY,DRIVE


  • 5002-400079-12 PULLEY(2) 1
  • 5002-400080-13 PULLEY(3) 2
  • 5010-405954-12 HOLDER,PULLEY 3
  • 5010-405872-13 SHAFT(1) 1
  • 5010-405873-12 SHAFT(2) 1
  • 5004-400021-12 HOUSING (509510045711 1
  • 5010-405955-11 SPACER(1),BEARING 2
  • 5010-405956-12 SPACER(2),BEARING 1
  • 022-100356-1 BEARING 608ZZ 4
  • 020-005664-1 CAP SCREW CBSST5-10 4
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 020-007185-1 SET SCREW M4*5 MF-ZNB DOUBLE POINT 2
  • 032-000062-1 SPRING WASHER M5 SUS304 4


    Assembly Part No: 5085-415481-11 PULLEY(X2,3) ASSY,DRIVE


  • 5002-400079-12 PULLEY(2) 1
  • 5002-400080-13 PULLEY(3) 2
  • 5010-405954-12 HOLDER,PULLEY 3
  • 5010-405872-13 SHAFT(1) 1
  • 5010-405873-12 SHAFT(2) 1
  • 5004-400021-12 HOUSING (509510045711 1
  • 5010-405955-11 SPACER(1),BEARING 2
  • 5010-405956-12 SPACER(2),BEARING 1
  • 022-100356-1 BEARING 608ZZ 4
  • 020-005664-1 CAP SCREW CBSST5-10 4
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 020-007185-1 SET SCREW M4*5 MF-ZNB DOUBLE POINT 2
  • 032-000062-1 SPRING WASHER M5 SUS304 4


    Assembly Part No: 5086-403957-15 X AXIS(E) ASSY,PRA


  • 5041-000299-12 CABLE ASSY 1746249-1 (PRA X #01) 1
  • 5041-000306-12 CABLE ASSY 1746250-1 (PRA X #06) 1
  • 5086-404162-11 CABLE,PRA X #05 1
  • 5086-402882-12 SENSOR,PHOTO PRA X #01 450 1
  • 5086-402883-12 SENSOR,PHOTO PRA X #02 450 1
  • 5086-402884-12 SENSOR,PHOTO PRA X #03 445 1
  • 5086-402885-11 SENSOR,LIGHT PRA X #01 730 1
  • 5086-402886-11 SENSOR,DETECT PRA X #01 200 1
  • 5041-000405-11 CABLE ASSY PRA MTR-X1 #02 1
  • 5041-000406-11 CABLE ASSY PRA MTR-X2 #02 1
  • 5041-000407-11 CABLE ASSY PRA MTR-X3 #02 1
  • 5086-404248-11 CABLE,PRA ENC-X1 #03 1
  • 5086-404249-11 CABLE,PRA ENC-X2 #03 1
  • 5086-404250-11 CABLE,PRA ENC-X3 #03 1
  • 5044-000077-11 PCB,I/F TOB1045(BOARD,CONN PRA X #02) 1


    Assembly Part No: 5085-405946-17 THETA AXIS ASSY


  • 5004-400020-12 THETA,BASE (509510045811 1
  • 5010-306499-12 BRACKET(FAN) 1
  • 5004-400016-11 HOLDER,BELT (509510045411 4
  • 5010-404896-11 BLOCK,FITTING 2
  • 5010-405326-11 SHUTTER(Z) 1
  • 5010-402272-12 STOPPER 1
  • 5010-401565-12 PLATE 2
  • 5010-403121-12 BRACKET 1
  • 5010-403122-12 BRACKET,SUPPORT 1
  • 5010-408760-11 COVER 1
  • 5010-306401-11 PLATE(1),CLAMP 2
  • 5010-405355-11 PLATE(2),CLAMP 2
  • 5010-306402-11 PLATE(3),CLAMP 2
  • 5010-405356-11 PLATE(4),CLAMP 4
  • 5010-405357-12 PLATE(5),CLAMP 2
  • 5010-403337-11 PLATE,NUT 4
  • 5010-403339-11 BRACKET,CLAMP(2) 2
  • 5010-403340-11 BRACKET,CLAMP(3) 2
  • 5002-300008-11 CABLE(1) 2
  • 5002-300009-11 CABLE(2) 2
  • 017-001655-1 TUBE PN-4-4*2.5 IVORY 1
  • 026-006368-1 SPACER NCLM6-8-17.5 4
  • 028-004861-1 FITTING,TUBE ELB4-PT1/8-TR 4
  • 028-016917-1 FITTING,TUBE EY4-PT1/8 2
  • 028-010939-1 FITTING,TUBE GPA6 2
  • 020-000821-1 CAP SCREW M3*6 SUS304 W/SPR&FLAT WASHER 26
  • 020-000007-1 CAP SCREW M3*8 SUS304 4
  • 020-001186-1 CAP SCREW M3*35 SUS304 12
  • 020-002945-1 CAP SCREW M4*6 SUS304 W/SPR&FLAT WASHER 16
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 20
  • 020-001093-1 CAP SCREW M4*14 SUS304 26
  • 020-000042-1 CAP SCREW M4*20 SUS304 6
  • 020-000064-1 CAP SCREW M5*20 SUS304 16
  • 020-001164-1 CAP SCREW M6*30 SUS304 4
  • 032-000251-1 FLAT WASHER M3 SUS304 SMALL CIRCLE 4
  • 032-000005-1 FLAT WASHER M3 SUS304 POLISHED ROUND 12
  • 032-000054-1 SPRING WASHER M3 SUS304 16
  • 032-000011-1 FLAT WASHER M4 SUS304 POLISHED ROUND 6
  • 032-000058-1 SPRING WASHER M4 SUS304 32
  • 032-000018-1 FLAT WASHER M5 SUS304 ROLISHED ROUND 16
  • 032-000062-1 SPRING WASHER M5 SUS304 16


    Assembly Part No: 5085-406978-11 COVER(TH) ASSY


  • 5010-305828-12 COVER,FRONT 1
  • 5010-305829-12 COVER,REAR 2
  • 5010-305830-11 COVER,SIDE 2
  • 5010-305831-11 COVER,UNDER 1
  • 020-100825-1 BAIND SCREW M4*6 SUS304 30


    Assembly Part No: 5085-407862-11 MOTOR(T) ASSY


  • 5040-000009-11 MOTOR,SERVO SGMCS-08DDA-TE12 1
  • 020-004197-1 CLUMPING SCREW FSU6-16 6
  • 020-000080-1 CAP SCREW M6*10 SUS304 5
  • 020-000090-1 CAP SCREW M6*20 SUS304 6
  • 032-000187-1 FLAT WASHER M6 SUS304 POLISHED ROUND 6
  • 032-000066-1 SPRING WASHER M6 SUS304 6
  • 033-000016-1 NUT M6 SUS304 6


    Assembly Part No: 5086-403958-12 THETA AXIS(E) ASSY,PRA


  • 5041-000256-11 CABLE ASSY 1717344-6 (PRA T #11) 1
  • 5041-000257-11 CABLE ASSY 1717344-1 (PRA T #12) 1
  • 5041-000258-11 CABLE ASSY 1717344-3 (PRA T #13) 1
  • 5041-000259-11 CABLE ASSY 1717344-2 (PRA T#14) 1
  • 5041-000260-11 CABLE ASSY 1717344-5 (PRA T #15) 1
  • 5041-000261-11 CABLE ASSY 1717344-4 (PRA T #16) 1
  • 5041-000066-11 CABLE ASSY,FLAT WH FHV-SX(5W)76C A-A 1
  • 5086-402872-11 SENSOR,PHOTO PRA T #01 400 1
  • 5086-402873-11 FAN,DC PRA T #11 250 1
  • 5086-402874-11 FAN,DC PRA T #12 250 1
  • 5086-402875-11 FAN,DC PRA T #13 250 1
  • 5086-402876-11 FAN,DC PRA T #14 250 1
  • 5086-402877-11 FAN,DC PRA T #15 250 1
  • 5086-402878-11 FAN,DC PRA T #16 250 1
  • 5044-000017-11 PCB I/F TOB1037(CONN PRA THETA #01) 1


    Assembly Part No: 5085-404901-11 FORK(300)ASSY (NOT INSTALLED OR INCLUDED)


  • 5010-201367-13 FORK,PRA 1
  • 5004-300007-11 BLOCK(300),PRA (509510021211 3
  • 020-005778-1 CAP SCREW CBSST4-8 3
  • 020-002601-1 BAIND SCREW M3*4 SUS304 6
  • 032-000585-1 FLAT WASHER M4 1L SUS304 3


    Assembly Part No: 5085-410825-14 PLATE ASSY,HEAT SHIELD


  • 5004-400024-11 PLATE,COVER (509510045611 1
  • 5010-406949-11 SUPPORT(X-1) 1
  • 020-000028-1 CAP SCREW M4*6 SUS304 2
  • 020-007602-1 TORX CAP SCREW M4*8 SUS304 2
  • 020-002913-1 CAP SCREW M4*8 SUS304 W/SPR & FLAT WASHER 2
  • 032-000011-1 FLAT WASHER M4 SUS304 POLISHED ROUND 2
  • 032-000058-1 SPRING WASHER M4 SUS304 2





    This TEL Tokyo Electron 300mm Wafer PRA Process Block Robotics Arm is used untested surplus and is being sold as-is. The physical condition is good and there are visible signs of previous use and handling.





  • Sale Details





    • Item Condition: Untested Surplus, Sold As-Is


    • Estimated Packed Shipping Dimensions: L x W x H = 32"x32"x32" @ 250 lbs; Requires Freight Shipping


    • Shipping Terms: All Domestic and International shipping quotes and/or fees are subject to change due to packaging requirements, custom packing, transport rate fluctuations, and supply chain demands. We will contact you regarding any shipments that require or incur additional after purchase packing fees or rate changes.
    • Only items pictured are included: If a part is not pictured, or mentioned above, then it is not included in the sale. Pictured test equipment is not included or available for sale.
    • For items with multiple quantities: The pictured item is not necessarily the one that will be sent. Serial numbers or country of manufacture may vary.
    • Items are sold with a 90-Day Satisfaction Guarantee





      Lister 31










    Listed with ExportYourStore.com

    GENERAL SHIPPING TERMS
    All items will be securely packaged and shipped via traceable and insured UPS, FedEx, DHL, USPS or select Freight Carriers. All tracking information is forwarded to the email address provided when you placed your order.  We require a recipient or company name, address and phone number for all shipments. Shipping and handling times may vary based on the packing requirements, so please allow up to 5 business days for handling.


    Same Day Shipping Policy



    • For same day/tool down shipping you must contact us via phone at 505-345-8732 before 11:00am Mountain Standard Time and we will do our best to meet your shipping request.
    • Additional Fee for Same Day Shipping: The expedite fee will be equal to 10% of the subtotal on the sales order.
    • Same day shipping may not be available for freight items or if Semiconductor Spares is experiencing a large volume of outgoing orders.
    • Same day shipping is NOT available for international sales due to export requirements.



    Boxed Shipment Detaills

    • A contact name, current phone number, and company name are required for all shipments.
    • International Shipments: Carrier rates are calculated by package dimensions and shipping location. Buyer is responsible for duties, taxes (VAT), or other import fees.
    • We cannot ship items to Post Office Boxes (PO Box).
    • You are welcome to charge shipments to your account; please provide us with your preferred carriers shipping account number and shipping method.

    Freight Shipment Details

    • Freight shipments are commercial Dock to Dock deliveries; residential addresses are curbside service only, buyer is responsible for moving the product from the truck lift gate to their home.
    • Additional Fee for Residential/Home Delivery: $120.00 ($75.00 for lift gate service and $45.00 for non commercial addresses)
    • Additional Fee for Custom Crate/Pallet/Barrier Bagging: Packing rates may be added to both domestic and international shipments, please contact for current rates.
      You are welcome to arrange your own collect freight transportation please contact us via email: cs@semicondcuctorspares.com or 1-505-345-8732
    • For freight items offering free US Domestic shipping (residential delivery excluded), UES reserves the right to ship using economical method including ocean shipping service for international purchases.

    International Shipping

    International Freight items will be charged for their products at the time the order is placed. UES will then get the best quote for international freight and send the quote to the customer in a timely manner.

    These products are subject to export restrictions under U.S. law. The Bureaus of U.S. Census and the Bureau of Industry and Security (BIS) regulate exports through the Export Administration Regulations (EAR). We DO NOT any sell items to any locations in Country Group E. Please be aware that we may require up to 30 Days to determine the products export classifications [Export Control Classification Number (ECCN)] and in the unlikely event that an export license is required, we would need an additional 30-90 Days for licensing.

    In order to comply with export control laws established by the US Department of Commerce and the US Department of State, we require a written statement defining the ultimate End User, the End Use of each product to be exported and the buyers agreement to comply with the Export Administration Regulations (EAR). You will be contacted via email with the appropriate documents that will need to be returned to us in order to complete your order, please be advised that we cannot complete your order if you do not provide all of the data requirements.



    International Orders are subject to DUTIES, TAXES or other Import Fees; the bidder/buyer[s] is solely responsible for these fees, documents and transportation if held at a customs office in the destination country. In the event that you have questions about international shipping logistics please contact us before purchase.

     Payments

    • We accept: PayPal, All Major Credit Cards, and Bank Wire Transfers in USD (There is a $25 wire transfer fee).
    • The current local Sales Tax will be added to all purchases based in NEW MEXICO.
